MK-012-20 Factory Matched Stereo Pair Microphones
with cardioid, omni, hyper and MK-102 Capsules |
 |
 |
Technical Specifications
|
| Mic type |
Small diaphragm condenser |
| Polar Pattern |
Cardioid, Hypercardioid, Omnidirectional |
| Freq. Response |
20-20000Hz |
| Phantom voltage required |
48 +\- 2V |
| Full impedance, module |
less than 300 ohms |
| Weighted SPL (ref. DIN 45412) |
18 dBA |
| Maximum SPL in 250-8000Hz range, (less than 0.5% THD) |
130 db |
| Free field sensitivity at 1KHz |
10 mV/Pa |
| Free field sensitivity roll off from 40Hz to 20KHz |
should not exceed +\- 3 db |
| Weight |
70 gr |
| Length, mm |
128 |
| Max diameter/width, mm |
23 |
| Accessories included |
Mic holder |
| Accessories optional |
Shockmount |
The difference in free field
sensitivity between 0° and 90°
should be as follows: |

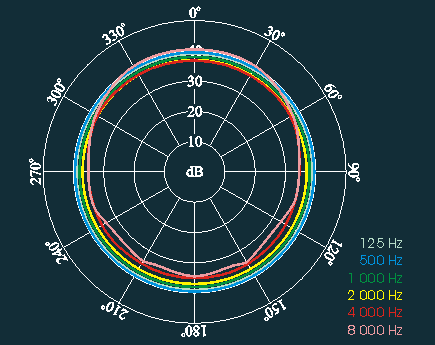

| For omnidirectional capsule: |
|
| in 40-1000 Hz range: |
no more than 2 db |
| in 1-5 KHz range: |
no more than 4 db |
| in 5-8 KHz range: |
no more than 8 db |

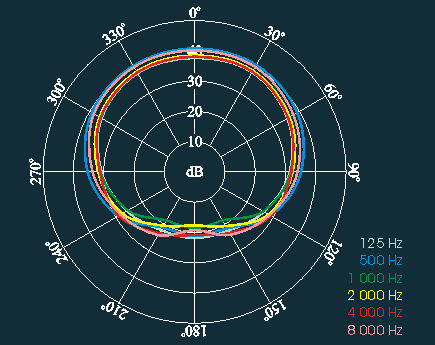

For cardioid capsule:
|
|
| in 250-8000 Hz range: |
no less than 4 db |
For hypercardioid capsule:
|
|
| in 250-5000 Hz range: |
no less than 8 db |
| Average sensitivity difference between O° and 180° for
cardioid capsule in 63-12500 Hz range: |
16 db |
|

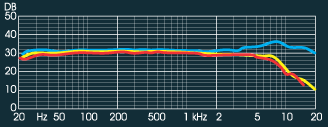

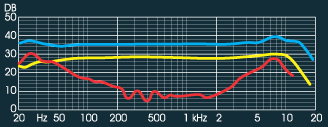

Fequency Response
|
|

Cardioid |
|

Omni |
|

Hyper-cardioid |
| Freq. Response, Hz |
20-20000 |
| Output sensitivity, mV/Pa |
16 |
| Max SPL, dB for 0, 5% THD |
120 |
| Self Noise (DIN), dBa |
<18 |
| Output impedance, ohm |
150 |
| Phase |
Positive |
| Powering, V |
48 |
| Switches |
-10dB Pad |
| Weight, g |
180 |
| Length, mm |
123 |
| Max diameter/width, mm |
39 |
|
MK-102 Capsule |
