Oktava MK-220 Factory Matched Stereo Pair

Technical Specifications

Mic type	Large diaphragm condenser
Polar Pattern	Cardioid, omni, fig-of-eight
Freq. Response, Hz	20-18000
Output sensitivity, mV/Pa	10
Max SPL, dB for 0,5% THD	140
Self Noise (DIN), dBa	<14
Output impedance, ohm	200
Phase	Positive
Powering, V	48
Supply current, mA	8
Switches	-10dB / High-Pass Filter
Weight, g	620
Length, mm	205
Max diameter/width, mm	52
Temp. Range	-35degrees C to +45 degrees C
Relative Humidity	85% (+25 degrees C)
Accessories	included Mic holder
Accessories	optional Shockmount

Frequency response charts

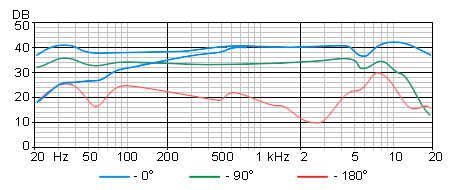

Cardioid

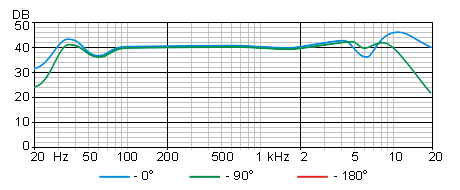

Omnidirectional

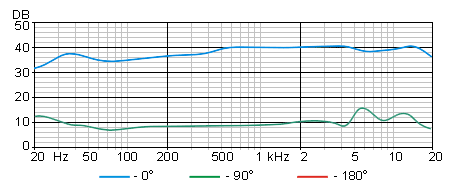

Figure-8 pattern
